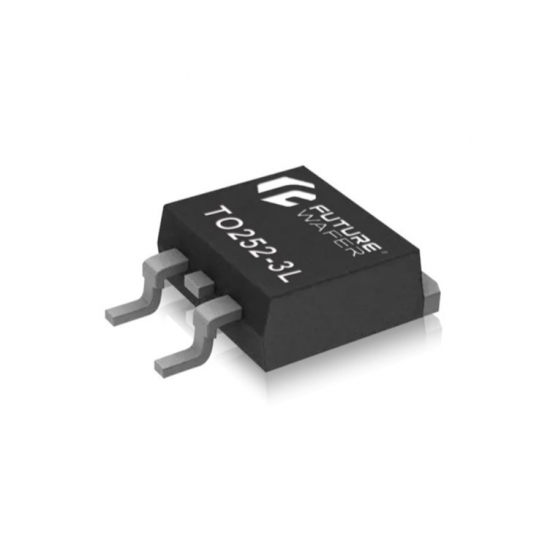

650V , 6A , TO252 SiC Schottky diode-FWSC06065BD
650V , 6A , DFN8080 SiC Schottky-FWSC06065FC
650V , 6A , ITO220-AC SiC Schottky diode-FWSC06065BA 650V , 6A , DFN8080 SiC Schottky-FWSC06065FC
Feature ● No Reverse Recovery/No Forward Recovery ● 650-Volts Schottky Rectifier ● High Frequency Operation ● Temperature Independent Switching Behavior ● Extremely Fast Switching ● Positive Temperature Coefficient on VF
Technical Info
Download
Repetitive Reverse Voltage
650 V
Continuous Forward Current
6 A , TC = 150-°C
Diode Forward Voltage
1.44 V(TYP) , IF=6-A , Tj = 25 °C
Reverse Current
100 uA(TYP) , VR = 650 V , Tj = 25 °C
Peak Surge Current
42 A , TC = 25 °C , tp = 10 ms, Half sine wave
Operating Temperature
175-°C
Configure
Single
Package
TO252
Power dissipation
85 W, TC = 25 °C
Total Capacitive Charge
16 nC(TYP) , VR = 650 V , di / dt = 500 A/us , IF = 6 A
Total Capacitance
38 pF(TYP) , VR = 400 V , f = 1 MHZ
Marking
06065
