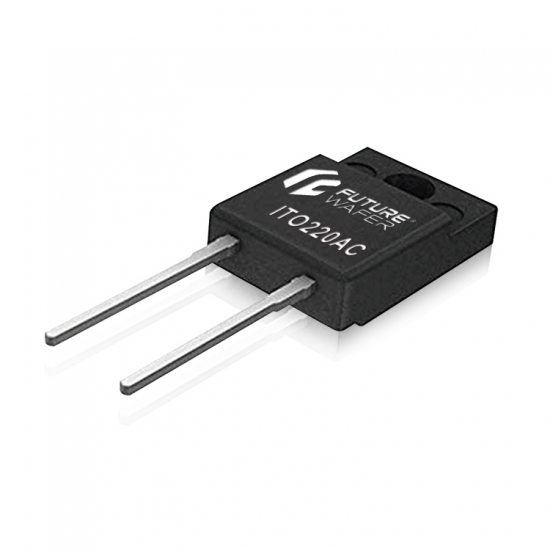

650V , 6A , ITO220-AC SiC Schottky diode-FWSC06065BA
650V , 6A , TO252 SiC Schottky diode-FWSC06065BD
650V , 4A , ITO220-AC SiC Schottky diode-FWSC04065BA 650V , 6A , TO252 SiC Schottky diode-FWSC06065BD
Feature ● No Reverse Recovery/No Forward Recovery ● 650-Volts Schottky Rectifier ● High Frequency Operation ● Temperature Independent Switching Behavior ● Extremely Fast Switching ● Positive Temperature Coefficient on VF
Technical Info
Download
Repetitive Reverse Voltage
650 V
Continuous Forward Current
6 A , TC = 150 °C
Diode Forward Voltage
1.44 V(TYP) , IF=6 A, TC = 25 °C
Reverse Current
100 uA(MAX) , VR = 650 V , TC = 25 °C
Peak Surge Current
42 A , TC = 25 °C , tp = 10 ms, Half sine wave
Operating Temperature
175 °C
Configure
Single
Package
ITO220-AC
Power dissipation
85 W
Total Capacitive Charge
16 nC (TYP) , VR = 650 V , di / dt = 500 A/us , IF = 6 A
Total Capacitance
38 pF (TYP), VR = 400 V , f = 1 MHZ
Marking
06065
