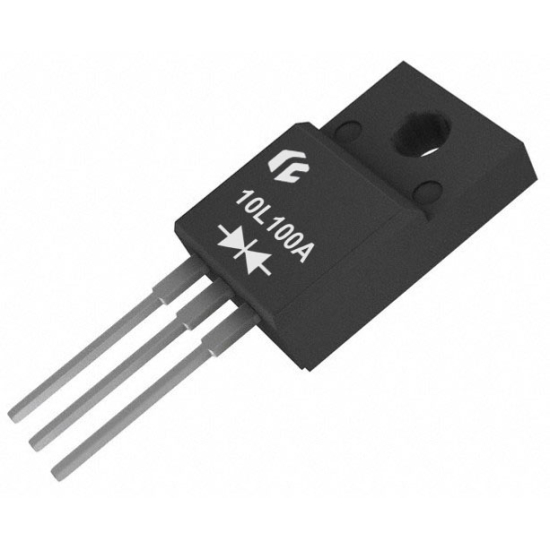

100V , 10A , ITO220 Trench MOS Barrier Schottky-TBR10L100BCTC
100V , 10A , TO-277B Ultra-Low VF Trench MOS Barrier Schottky-TBR10L100HT
100V , 10A , TO252 Trench MOS Barrier Schottky -TBR10L100BDP 100V , 10A , TO-277B Ultra-Low VF Trench MOS Barrier Schottky-TBR10L100HT
Technical Info
Repetitive Reverse Voltage
100-V
Continuous Forward Current
5-A × 2 , TC≤110-°C
Diode Forward Voltage
0.73-V , IF=5-A , Tj=25-°C , Per Leg
Reverse Current
20-uA , VR=100-V , Tj=25-°C , Per Leg
Peak Surge Current
150-A , 8.3-mS signal half sine wave
Operating Temperature
-55-°C to 150-°C
ESD Level
8-KV, IEC61000-4-2,Contact
Package
ITO220-AB
Marking
10L100A
Counter
H34-B
