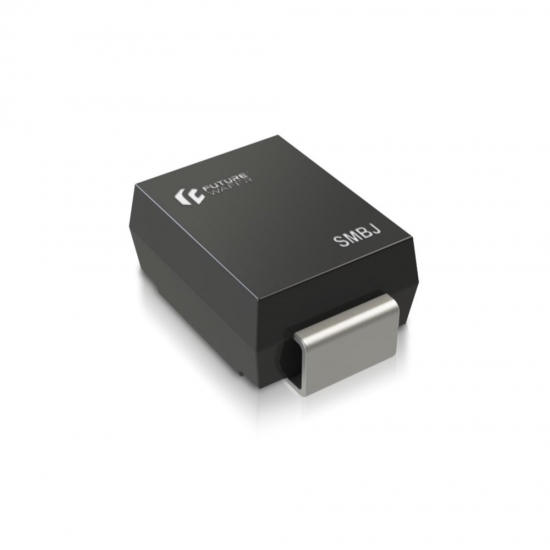

600V , 2A , SMBJ Surface mount rectifier- 2SRJB

● Photo Glass Passivated Dice ● Low Power Loss ● Low Forward Voltage Drop ● High Current Capacitance ● Fast Switching for High Efficiency

Technical Info

Repetitive Reverse Voltage

600-V

Continuous Forward Current

2-A , TA = 25-°C

Diode Forward Voltage

1.15-V , TA = 25-°C

Reverse Current

5-uA , TA = 25-°C

Reverse Recover Time

4-uS , IF=0.5-A; IR=1.0-A; Irr=0.25-A

Peak Surge Current

50-A, 8.3-ms Single Half sine-Wave

Package

SMBJ

Maximum RMS Voltage

420-V

Typical Junction Capacitance

30-pF , VR = 4.0-V

Marking

S2JB
