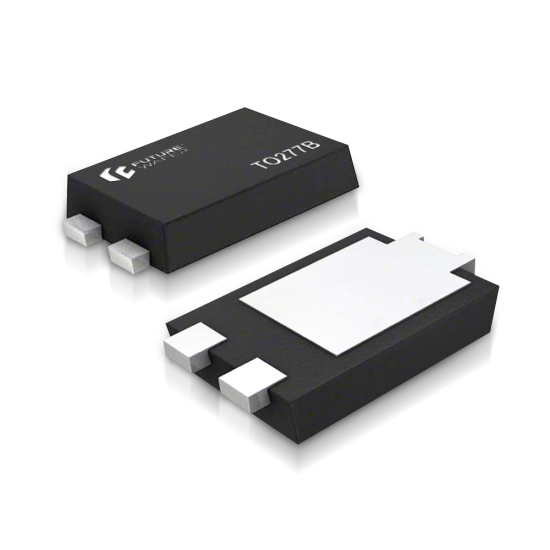

400V , 15A , TO277 Fast recover epitaxial diode-FR15S40HT

Technical Info

Repetitive Reverse Voltage

400 V , IR=50-uA,T amb <= 25 -°C

Continuous Forward Current

15 A , Tamb <= 75-°C

Diode Forward Voltage

1.17 V(TYP) , IF = 15-A , Tj = 25 -°C

Reverse Recover Time

19 nS(TYP) , VR = 30-V , di / dt = 100-A/us, IF = 1-A , Tj = 25-°C

Peak Surge Current

250 A , tp <= 8.3-mS;Square wave

Package

TO277-B

Reverse current

2 uA(MAX) , V R = 400-V Tj = 25 -°C

Marking

FW15BH
