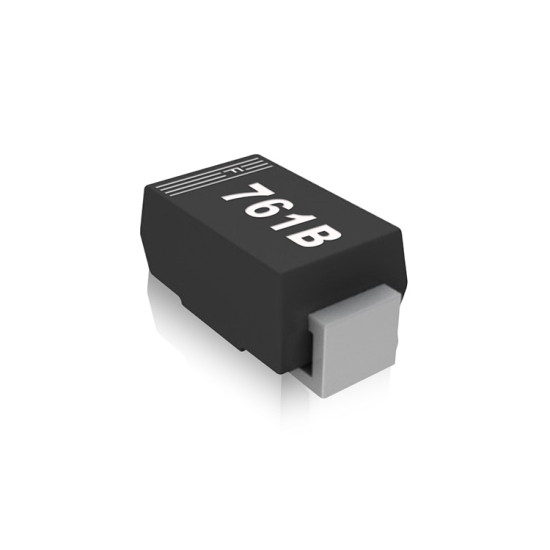

75V , 1W , SMAJ Zener diode-1SMA4761
This series of Zener diodes is packaged in a SMAJ surface mount package, They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Technical Info
Download
Zener voltage
71.3-V ~ 78.8-V ,IZT=3.3-mA
Power dissipation
1-W , TA = 25°C
Reverse current
0.1-uA , VR= 56-V
Package
SMAJ
Peak forward surge current
10-A , 8.3-ms Single Half-Wave
Peak pulse voltage
±30-KV , IEC61000-4-2 Contact
Operating temperature
-55°C ~ +150°C
Dynamic impedance
175-Ω , IZT=3.3-mA
Marking
761B
