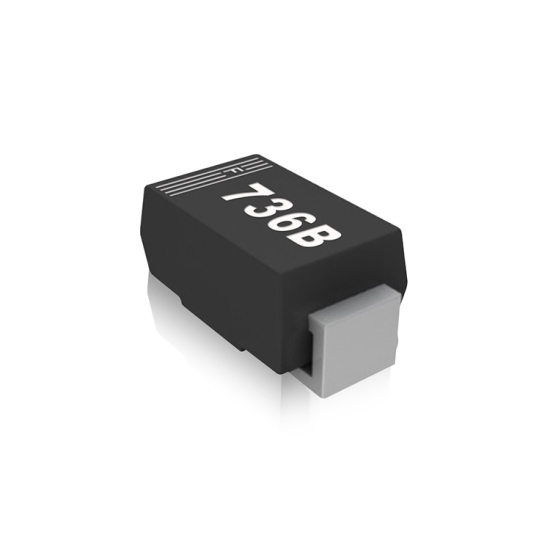

6.8V , 1W , SMAJ Zener diode-1SMA4736
The 1SMA4736A of Zener diodes is packaged in a SMAJ surface mount package, They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Technical Info
Download
Zener Voltage
6.5-V ~ 7.1-V , IZT=37-mA
Total device dissipation
1-W
Reverse Current
10-uA @ 4-V
Package
SMAJ
Maximum forward voltage
1.3-V , IT=10-mA
Peak forward surge current
10-A , TP=8.3-ms
ESD discharger
±30-KV , IEC61000-4-2 R = 330-Ω,C = 150-pF
Operating temperature
-55-°C ~150-°C
Dynamic impedance
ZZT : 3.5-Ω @ IZT : 37-mA
Marking
736B
