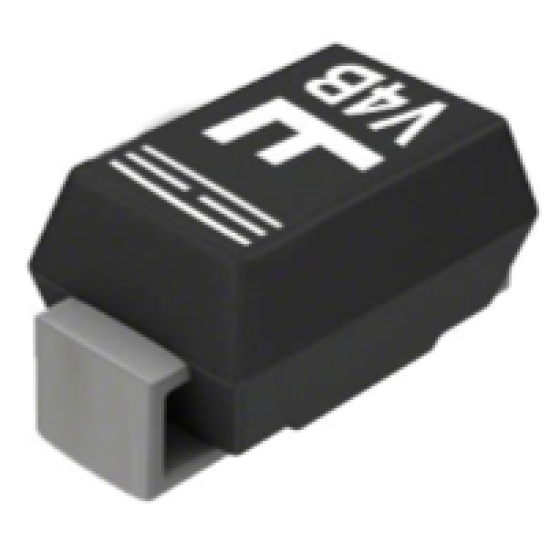

TBR04L100B
TBR03L120A
TBR04L100B
TBR10L080BFC
TBR03L120A TBR10L080BFC
Technical Info
Download
Repetitive Reverse Voltage
100-V
Continuous Forward Current
4-A , TC = 75-°C
Diode Forward Voltage
0.69-V , IF=4-A , TJ = 25-°C
Reverse Current
20 uA , VR=100-V , TJ = 25-°C
Peak Surge Current
100-A , 8.3-mS signal half sine wave
Operating Temperature
-55°C to 150°C
ESD Level
8-KV, IEC61000-4-2,Contact
Package
SMBJ
Marking
FV4B
Counter
H31-B
