FutureWafer Tech Co.,Ltd,

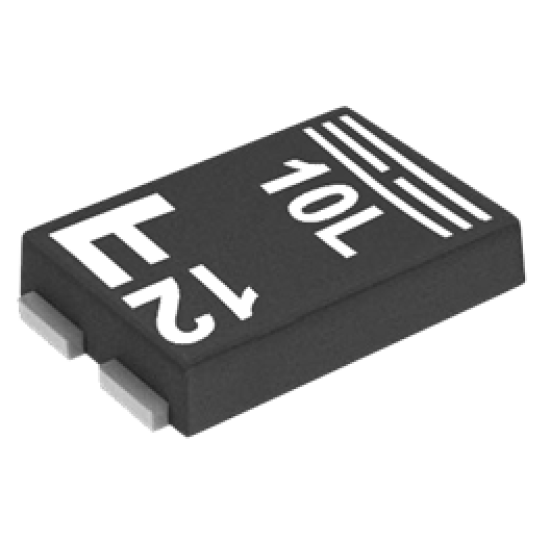

120V , 10A , TO277B Trench MOS Barrier Schottky -TBR10L120HT

Technical Info

Repetitive Reverse Voltage

120-V

Continuous Forward Current

10-A, TC≤75-°C

Diode Forward Voltage

0.82-V , IF=10-A,Tj=25-°C

Reverse Current

30-uA , VR=120V,Tj=25°C

Peak Surge Current

160-A , 8.3mS signal half sine wave

Operating Temperature

-55°C to 150°C

ESD Level

8 KV , IEC61000-4-2,Contact

Package

TO277-B

Marking

F10L12

Counter

H41-B
