FutureWafer Tech Co.,Ltd,

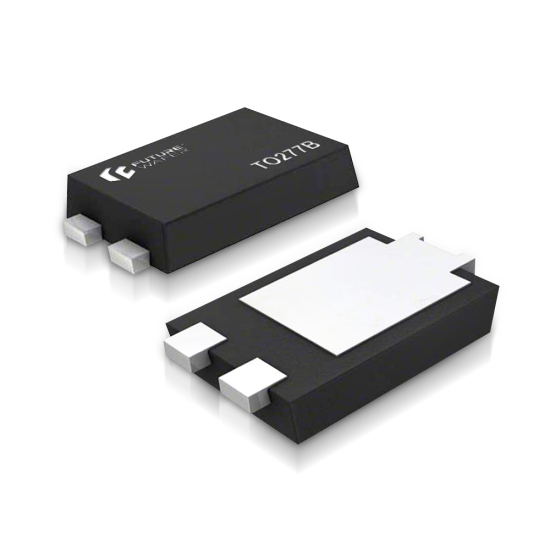

100V , 12A , TO277 Trench Mos Barrier Schottky-TBR12L100HT

Technical Info

Repetitive Reverse Voltage

100 V

Continuous Forward Current

12 A , TC=75°C

Diode Forward Voltage

0.61 V(TYP) , IF=12A , TJ=25°C

Reverse Current

12 uA(TYP) , VR=100V , TJ=25°C

Peak Surge Current

200 A, 8.3mS signal half sine wave

Operating Temperature

-55°C to 150°C

ESD Level

8 KV, IEC61000-4-2,Contact

Package

TO277-B

Marking

F12M10
