FutureWafer Tech Co.,Ltd,

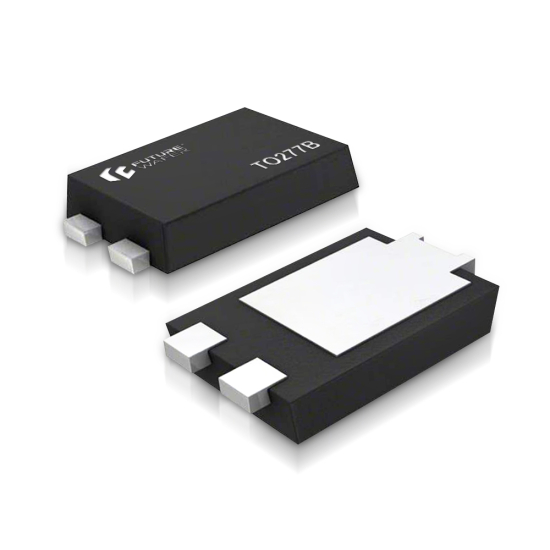

45V , 15A ,TO277 Trench Mos Barrier Schottky-TBR15M045HT

Technical Info

Repetitive Reverse Voltage

45 V

Continuous Forward Current

15 A , TC ≤ 110°C

Diode Forward Voltage

0.49 V(TYP) ,IF=15A , TJ ≤ 25°C

Reverse Current

15 uA(TYP) ,VR=45V , TJ ≤ 25°C

Peak Surge Current

210 A, 8.3mS signal half sine wave

Operating Temperature

-55°C to 150°C

ESD Level

8 KV , IEC61000-4-2,Contact

Package

TO277-B

Marking

F15M04
