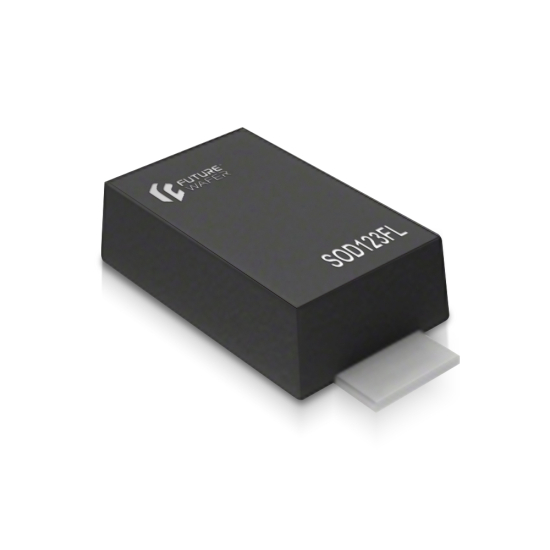

1-A , 100-V , SOD123FL General Schottky-SS110FL
1N5819SC
1-A , 100-V , SOD123FL General Schottky-SS110FL
1-A , 40-V , SMAJ General Schottky-SS14A
1N5819SC 1-A , 40-V , SMAJ General Schottky-SS14A
Technical Info
Download
Repetitive Reverse Voltage
100-V
Continuous Forward Current
1-A , Tc=90-°C
Diode Forward Voltage
0.85-V(MAX),IF=1-A , TJ=25-°C
Reverse Current
0.1 mA(MAX),VR=100-V , TJ=25-°C
Peak Surge Current
30-A,8.3ms Single Half Sine-Wave
Operating Temperature
-55°C to 150°C
Package
SOD-123FL
Marking
S110
Counter
G53-F
