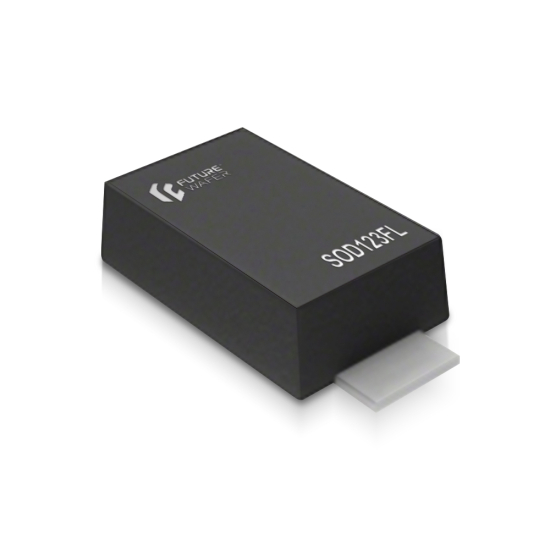

2A , 40V , SOD123FL General Schottky-SS24FL

2-A , 40-V, SMBJ Surface mount Schottky barrier rectifier-SS24B

2-A , 60-V , SMAJ General Schottky-SS26A

2-A , 40-V, SMBJ Surface mount Schottky barrier rectifier-SS24B 2-A , 60-V , SMAJ General Schottky-SS26A

● Low forward voltage drop . ● Peak forward surge current , IFSM : 50 A ● High frequency operation ● Essentially no switching losses ● Higher efficiency ● Reduction of heat sink requirements ● Parallel devices without thermal runaway ● Higher system reliability due to lower operating temperatures

Technical Info

Download

Repetitive Reverse Voltage

40 V

Continuous Forward Current

2 A, TA=110°C

Diode Forward Voltage

0.5 V (MAX) , IF=2A , TA=25°C

Reverse Current

150 uA (MAX) , VR=40 V ,TA=25 °C

Peak Surge Current

50 A, (tp≤8.3ms)

Operating Temperature

-55°C to 150°C

Package

SOD-123FL

Marking

S24L

Counter

H13-B
