SS110A

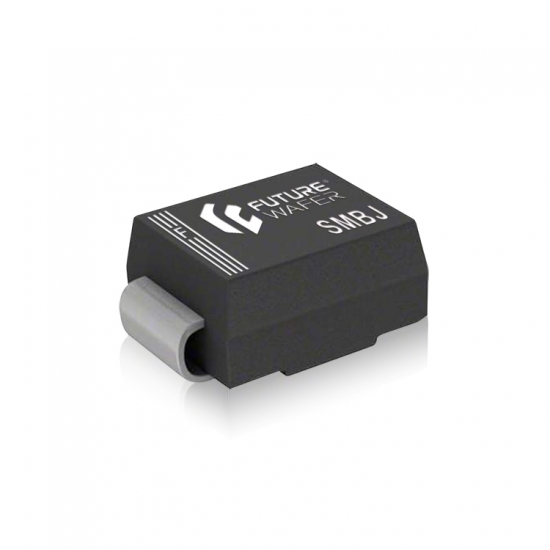

SS12B

SS12B

Technical Info

Repetitive Reverse Voltage

20 V

Continuous Forward Current

1 A

Diode Forward Voltage

0.50 V, Max.

Reverse Current

0.2 mA , Max.

Peak Surge Current

30 A

Operating Temperature

-55 to 150

Package

SMBJ
