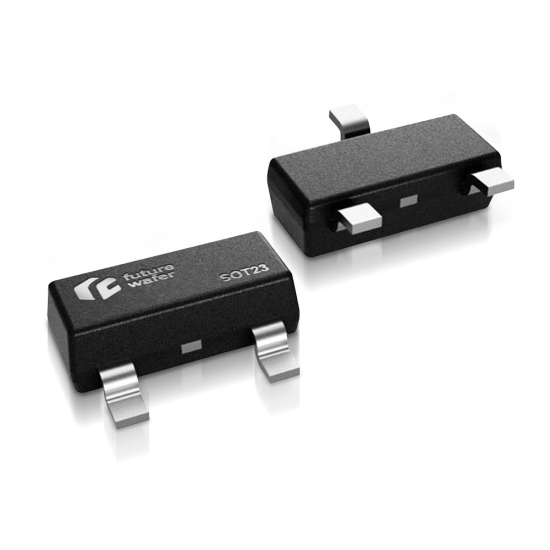

200V , 225mA , SOT23 Surface mount Schottky barrier diode-BAV23

The BAV23 is surface mount Schottky diode, encapsulated in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. .

Technical Info

Repetitive reverse voltage

200-V

Continuous forward current

225-mA

Diode forward voltage

1.0-V @ IF=100-mA

Reverse current

0.1-uA , Max.

Repetitive peak forward curren

9-A @ tp = 1-μs; square wave

Operating Temperature

-55-°C to 150-°C

Package

SOT-23 , Signal channel

Junction capacitance

5-pF @ Vdc=0-V,f=1-MHZ

Reverse recovery time

50-nS @ IF=10-mA,VR=6-V, IRR=1-mA,RL=100-Ω
