100V , 2A , ABS Schottky Bridge rectifier - ABSK210AS
60V , 3A , ABS Schottky bridge rectifier-ABS36SK

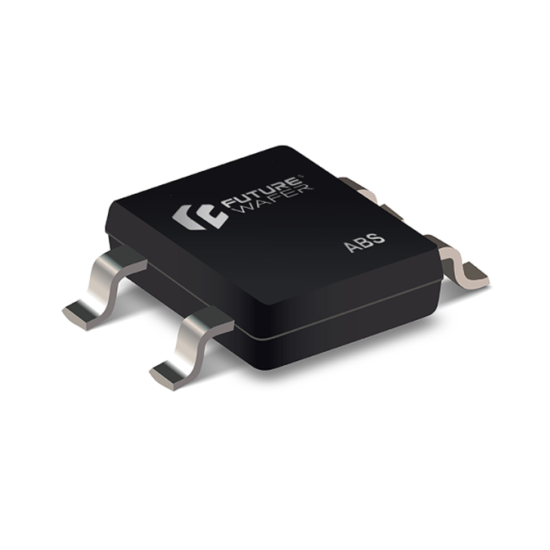

100V , 2A , ABS Schottky Bridge rectifier - ABSK210AS
100V , 1A , MBS Low VF Schottky bridge - MBS1100SU
60V , 3A , ABS Schottky bridge rectifier-ABS36SK 100V , 1A , MBS Low VF Schottky bridge - MBS1100SU
● Low leakage ● Surge overload rating: 60 A Peak ● Rating to 100 VRRM
Technical Info
Download
Repetitive Reverse Voltage
100V
Continuous Forward Current
2A , TA = 50°C
Diode Forward Voltage
0.85V(Max.) , IFM = 2A , TJ = 25°C
Reverse Current
0.5uA(typ). VRWM = 100V , TJ = 25°C
Peak Surge Current
60A , 8.3ms , Half-Sine wave
Operating Temperature
-55°C to 150°C
Package
ABS
Operating temperature
-55°C ~ 150°C
