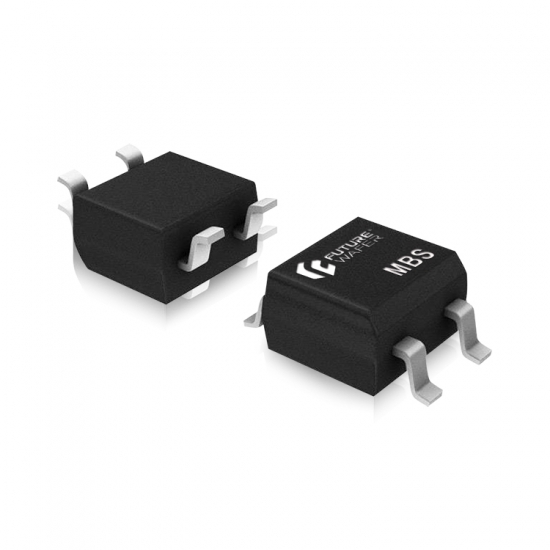

40V , 2A , MBS Low VF Schottky bridge-MBS240SU
60V , 2A , MBS Low VF Schottky bridge-MBS260SU
60V , 1A , MBS Low VF Schottky bridge-MBS160SU 60V , 2A , MBS Low VF Schottky bridge-MBS260SU
● Low stored charge, majority carrier conduction ● Low power loss / high efficiency ● Extra low VF
Technical Info
Download
Repetitive reverse voltage
40-V
Continuous forward current
2-A , TA=40-°C
Diode forward voltage
0.48-V, Max.
Reverse current
0.5-mA , Max.TA=25-°C
Peak Surge Current
50-A, 8.3ms single half sine-wave
Operating Temperature
-55-°C to 150-°C
Package
MBS
Typical junction capacitance
200-pF, VR=4.0-V,F=1-MHZ
Marking
2B4S
