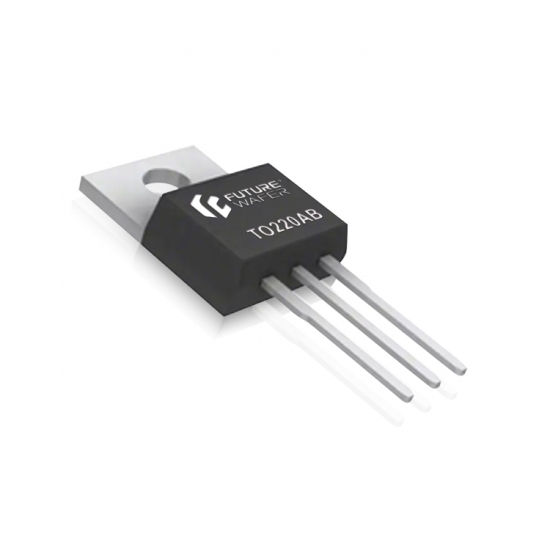

FW7812R
FW7809S
FW7812R
FW7812S
FW7809S FW7812S
Technical Info
Download
Input Voltage
14.5 V ~ 30 V
Output Current
1.5 A
Output Voltage
11.5 V ~ 12.5 V
Dropout Voltage
2 V
Bias Current
4.3 mA
Load Regulation
30 mV
Operating Temperature
125 °C
Supply Voltage Rejection
61 dB
Package
TO-220AB
