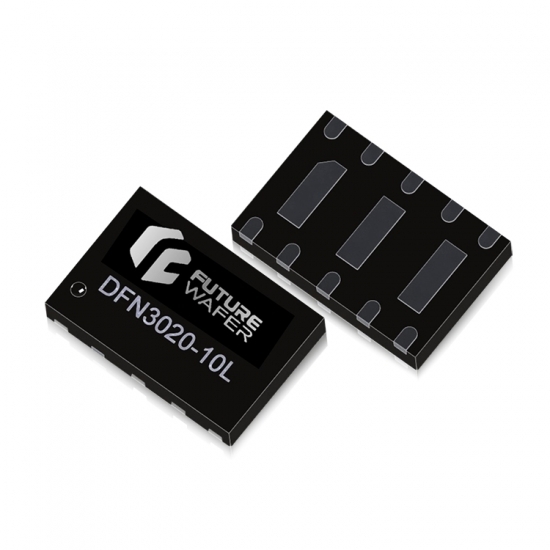

2.5V , 1KW , DFN3020 High peak current ESD-FHC258AD
2.8V , 2.5KW , SOP8 High current ESD array-FLC03-3.3A
2.5V , 700W , SOP8 High peak current-FHC2588P 2.8V , 2.5KW , SOP8 High current ESD array-FLC03-3.3A
● With TVS Diode ● ESD protection ● Low clamping voltage ● 1000 Watts peak pulse power per line (tp = 8/20uS) ● Protection 4 pairs lines in common mode ● Low operating voltage : 2.5 V ● Low capacitance for high-speed interfaces
Technical Info
Download
Reverse Voltage
2.5 V
Snap Back Voltage
2.8 V(Min) , ISB = 50 mA
Peak Pulse Current
40 A , 8/20 us, current waveform
Junction Capacitance
2.5 pF(Max) , I/O Pins , Vdc = 0 V, f = 1MHZ
Configure
Uni-Dir
Peak Pulse Power
1000 W , 8/20 us, current waveform
ESD lEVEL
30 KV , VESD (Contact) , R = 330 Ω , C = 150 pF
Package
DFN3020-10L
Clamping voltage
20V , IPP = 40 A , tp = 8/20 us line to line , 2 I/O pins connected together on each line
