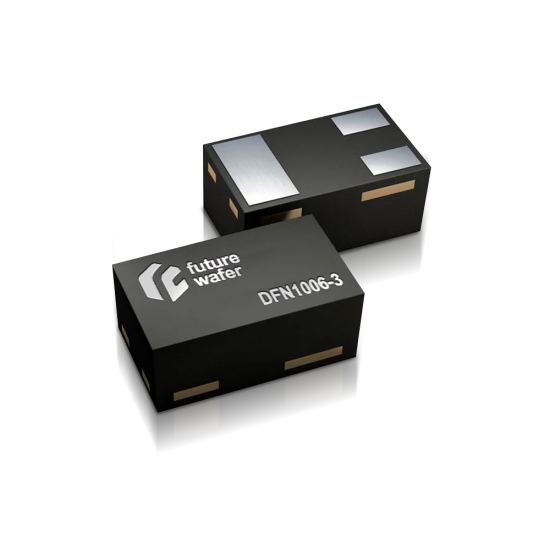

5V , 40W , DFN1006 2-line General ESD Protection-FDA053ADT
5V , 40W , DFN1010 4-line Low Capacitance ESD Protection-FDA054DP3X2
5V , 150W , SOT363 Low capacitance ESD array-FDA0536T5 5V , 40W , DFN1010 4-line Low Capacitance ESD Protection-FDA054DP3X2
●With TVS Diode ●ESD Protection:Level 4 ●Low Clamping Voltage ●40 Watts Peak Pulse Power Per Line(tp=8/20uS) ●Ultra Low Capacitance:10pf Typ.(I/O– GND.) ●Protection 2 I/O port
Technical Info
Reverse Voltage
5.0 V
Breakdown Voltage
5.6 V (Min)
Peak Pulse Current
5.0 A , tp=8/20us
Junction Capacitance
5-pF. (typ) , I/O to I/O , Vdc=0V,f=1MHZ
Configure
Bi-directional
Peak Pulse Power
40 W , tp=8/20us
ESD Level
25-KV , 61000-4-2(ESD):Level 4,
Package
DFN1006-3L
Marking
2T
Counter
C34-F
