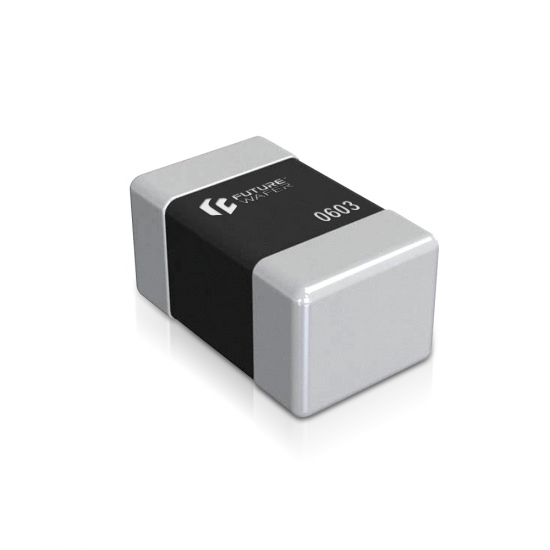

Extra low CJ Bi-direction TVS protection-FE0603H06V0P2
Extra low CJ Bi-direction TVS protection-FE0603H06V0P2
58V , 30A , 0603 High Surge Bi-direction TVS protection-FE0603V58R15P
  58V , 30A , 0603 High Surge Bi-direction TVS protection-FE0603V58R15P
Technical Info
Download
Maximum DC blocking voltage
6-V
Maximum Clamping voltage
30-V
Breakdown voltage
7.6-V
Response time
<0.5-nS
Leakage Current
<0.05-uA
Typical junction capacitance
0.2-pF @ F=1-MHZ
ESD pulse withstand
25-KV
Package
1.75 X 0.80 X 0.8-mm
Peak pulse current
30-A @ 8/20us
